E4131 LCD hotel lock

Security Features

Solid deadbolt
Renovated clutch inside lock panels
Standard 1680 events,optional 3360events
Optinal Bluetooth solution
Interface with Opera or FIAS format PMS
Passed the 180-minute fire test

E4131 LCD hotel lock Summary

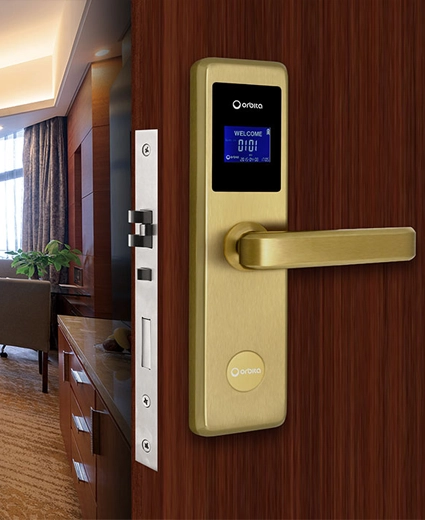

ORBITA E4131 Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.

E4041 hotel lock sensing area adopts integrated fashionable LCD display, which supports the display of “Welcome to check in, roomNo., battery power, door lock clock, week, door lock failure “and other information.

E4131 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.

Product Details

Material	Stainless Steel,Moisture Proof,Fire Retardant
Working Voltage	DC6V or 4 AA Alkaline batteries
Low Voltage Alarm	4.8V
Working Temperature	-20℃~60℃
Unlocking Record	1680PCS
Keycard Option	Mifare 1 card
Size	L280mmxW75mmxH22mm
Door Thickness	5/4" (32mm) to 2（3/4 ）" (72mm) for standard product
Operating Power	Quiescent current: <30 μA
Dynamic Current	< 200 mA
Battery Life	Last over one year
Relative Humidity	20% – 90%
