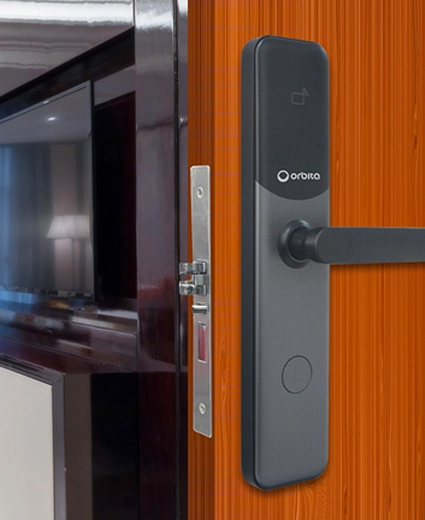

ORBITA ECO-141 Hotel Lock made of grade Stainless Iron with a ABS card reader cover, with strong resistance to impact, corrosion and abrasion.
ECO-141 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions.our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
ECO-141 Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Material |
Stainless Iron |
---|---|
Working Voltage | DC6V or 4 AA Alkaline batteries |
Low Voltage Alarm | 4.8V |
Working Temperature | -20℃~60℃ |
Unlocking Record | 1680PCS |
Keycard Option | Mifare 1 card |
Size | L338mm x W72mm x H22mm |
Door Thickness | 1.496" (38mm) to 2.756" (78mm) for standard product |
Operating Power | Quiescent current: <30 μA |
Dynamic Current | < 200 mA |
Battery Life | Last over one year |
Relative Humidity | 20% – 90% |
