S3063P ORBITA Hotel Door Lock

Security Features
S3063P hotel lock Summary

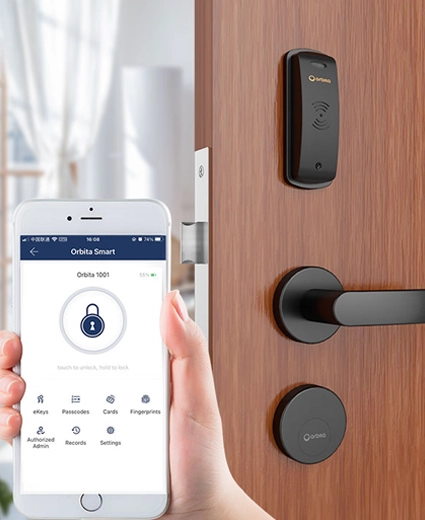

ORBITA S3063P Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.

S3063P Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.



S3063P Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.

Product Details

Material

Stainless Steel,Moisture Proof,Fire rated
Working Voltage DC6V or 4 AA Alkaline batteries
Low Voltage Alarm 4.8V
Working Temperature -20℃~60℃
Unlocking Record 1680PCS
Keycard Option Mifare 1 card
Size L94mm x W36mm x H20mm
Door Thickness 5/4" (32mm) to 2(3/4 )" (72mm) for standard product
Operating Power Quiescent current: <30 μA
Dynamic Current < 200 mA
Battery Life Last over one year
Relative Humidity 20% – 90%
