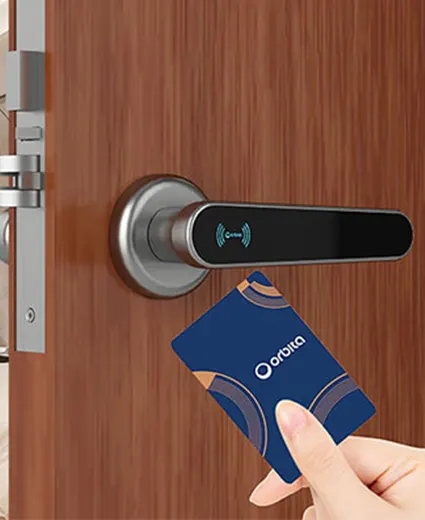

S3076 ORBITA Hotel RFID lock

Security Features

Solid deadbolt
Renovated clutch inside lock panels
Standard 1680 events,optional 3360events
Optinal Bluetooth & Wireless Online solution
Interface with Opera or FIAS format PMS
Passed the 180-minute fire test

S3076 Hotel Lock Summary

ORBITA S3076 Hotel Lock is made of grade zinc alloy with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.

S3076 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.

Product Details

Material	7304 Stainless steel and zinc alloy
Working Voltage	DC6V or 4 AA Alkaline batteries
Low Voltage Alarm	4.8V
Working Environment	-20℃~60℃
Unlocking Record	1680
Keycard Option	Mifare 1 card
Size	L62mm x W62mm x H12mm
Door Thickness	1（50/64）" (45mm) to 2（9/16 ）" (65mm) for standard product
Operating Power	Quiescent current: <30 μA
Dynamic Current	< 200 mA
Battery Life	Last over one year
Working Temperature	-20 ℃– 60℃; /td>
Relative Humidity	20% – 90%
